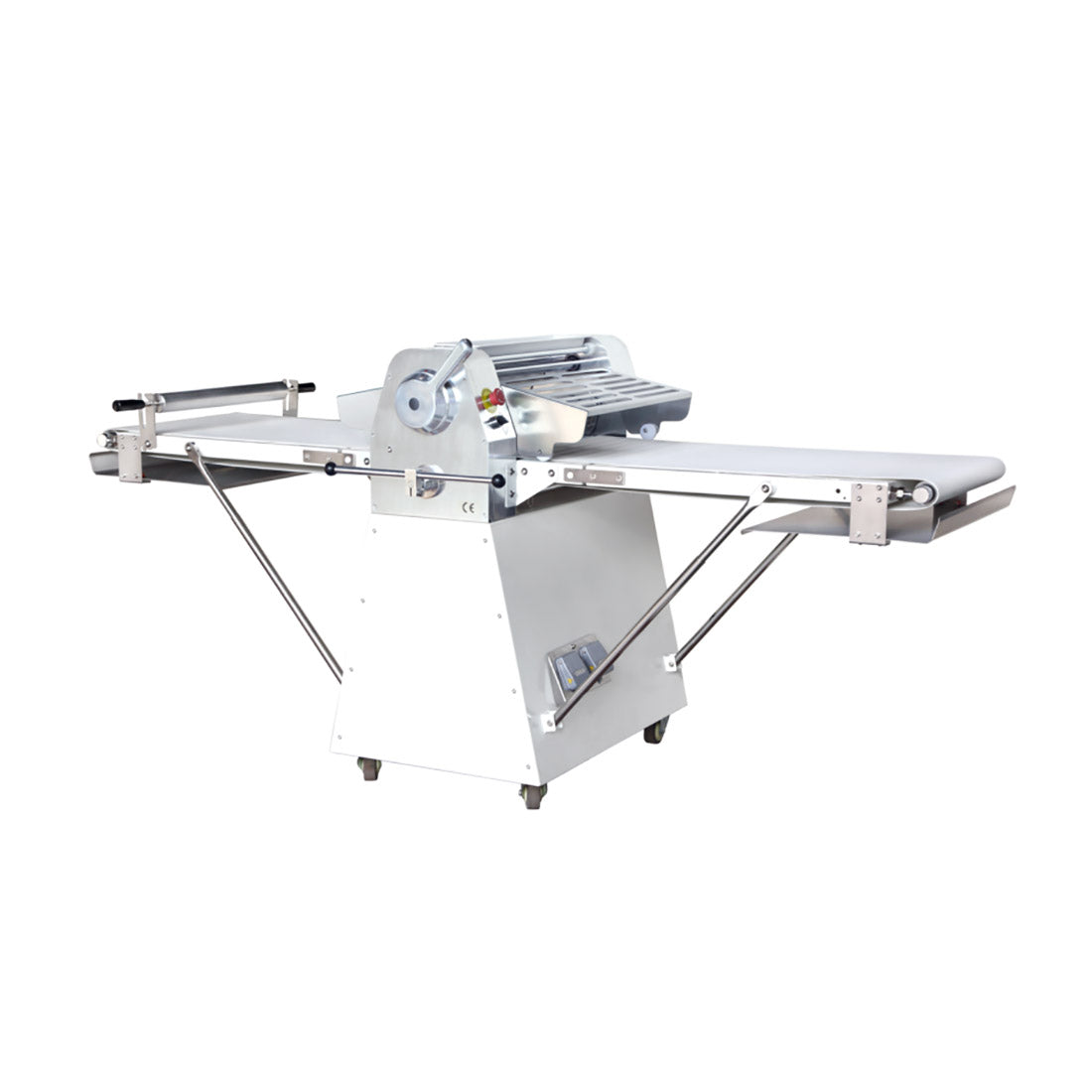

JDR-520/3N Floor Model Dough Sheeter

JDR-520/3N Floor Model Dough Sheeter

Key Features

• Tyrone Bench Model Sheeter
• Three phase
• Belt Width: 500mm
• Table Length: 960mm
• Adjustable Thickness: 1~35mm
• Large roller opening: 40mm (with large hard chrome rollers)
• Dough Weight Capacity: 5kg
• Steel, stainless steel & aluminium (not plastic components & casings like many other sheeters)
• Easy to remove & clean scraper assemblies with low replacement cost
• Safety guards with internal safety switching
• Quality food grade conveyor belt (not a cotton belt)
• No external switches to allow flour entry & subsequent damage
• Internal mechanism locks rollers in position, no ratchet to wear & possibly catch operator's knuckles
• Allows easy access in folded position to conveyor drive-rollers for cleaning (unlike other sheeters)
• Poor cleaning enables dough build up on the rollers causing a bump under the sheeting belt, this can catch on the scrapers thus ripping the belt

2 Years Parts and Labour Warranty

• Dimensions: 2550W x 880D x 1180H mm
• Packing Dimensions: 720.0W x 970.0D x 1720.0H mm
• Power: 415V; 375W
• Net Weight: 180 kg
• Chargeable Weight: 300.25 kg
