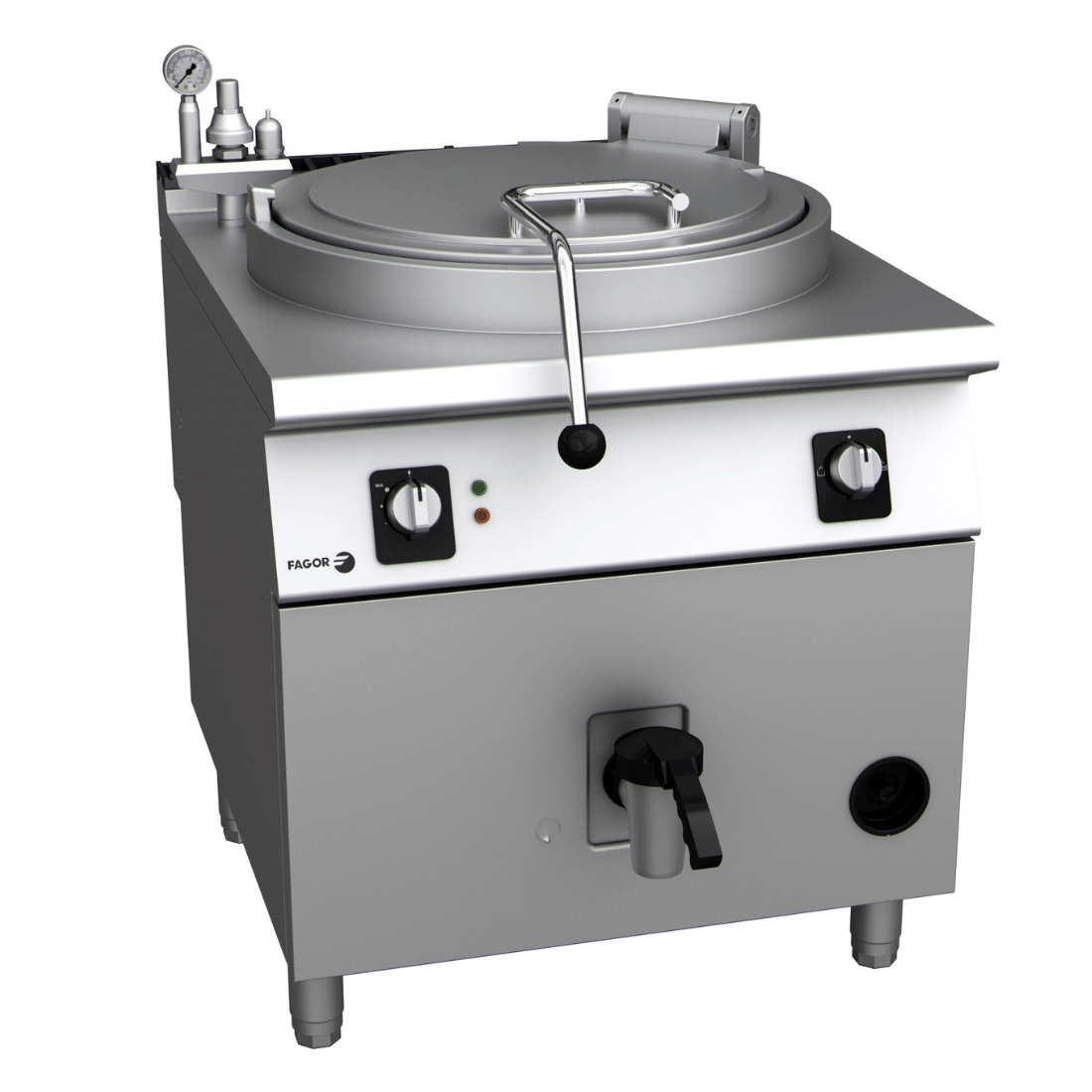

Fagor Kore 900 Series Indirect Heating Boiling Pan M-G915BM

Fagor Kore 900 Series Indirect Heating Boiling Pan M-G915BM

• Natural Gas
• Surface tops manufactured in 2mm thick AISI-304 stainless steel
• Laser-cut joints, automatic welding, and polishes. Screws are hidden from view
• Double-walled lid balanced using a hinge with front handle, with a diagonal opening to 75° which allows the lid to be kept open in any position
• Well stamped into the surface top by robotic welding, manufactured in 304 S/S, with the bottom of the well in AISI-316L stainless steel.
• Well filing with hot or cold water by electro valve, activated with a single switch located on the front panel
• Well emptying by 2" safety valve with handle in athermic material and safe and effortless handling.
• A robust and reliable filter for draining the well is manufactured in AISI-304 S/S. Easily extractable.
• Controls with a protective base and system against water infiltration
• High-temperature enameled cast iron flue protector.
• Access to the components from the front
• Machines with IPX5 grade water protection
• Group of optimized combustion stainless steel tubular burners, controlled by energy regulator and by pressure switch
• Control by energy regulator and by pressure switch, permitting lower water and energy consumption
• Ignition of a group of burners by spark train

• Dimensions: 800W x 930D x 850H mm
• Packing Dimensions: 900.0W x 1000.0D x 950.0H mm
• Power: 86.4 MJ/hr ; 24 kW
• Net Weight: 160 kg
• Chargeable Weight: 278.0 kg
