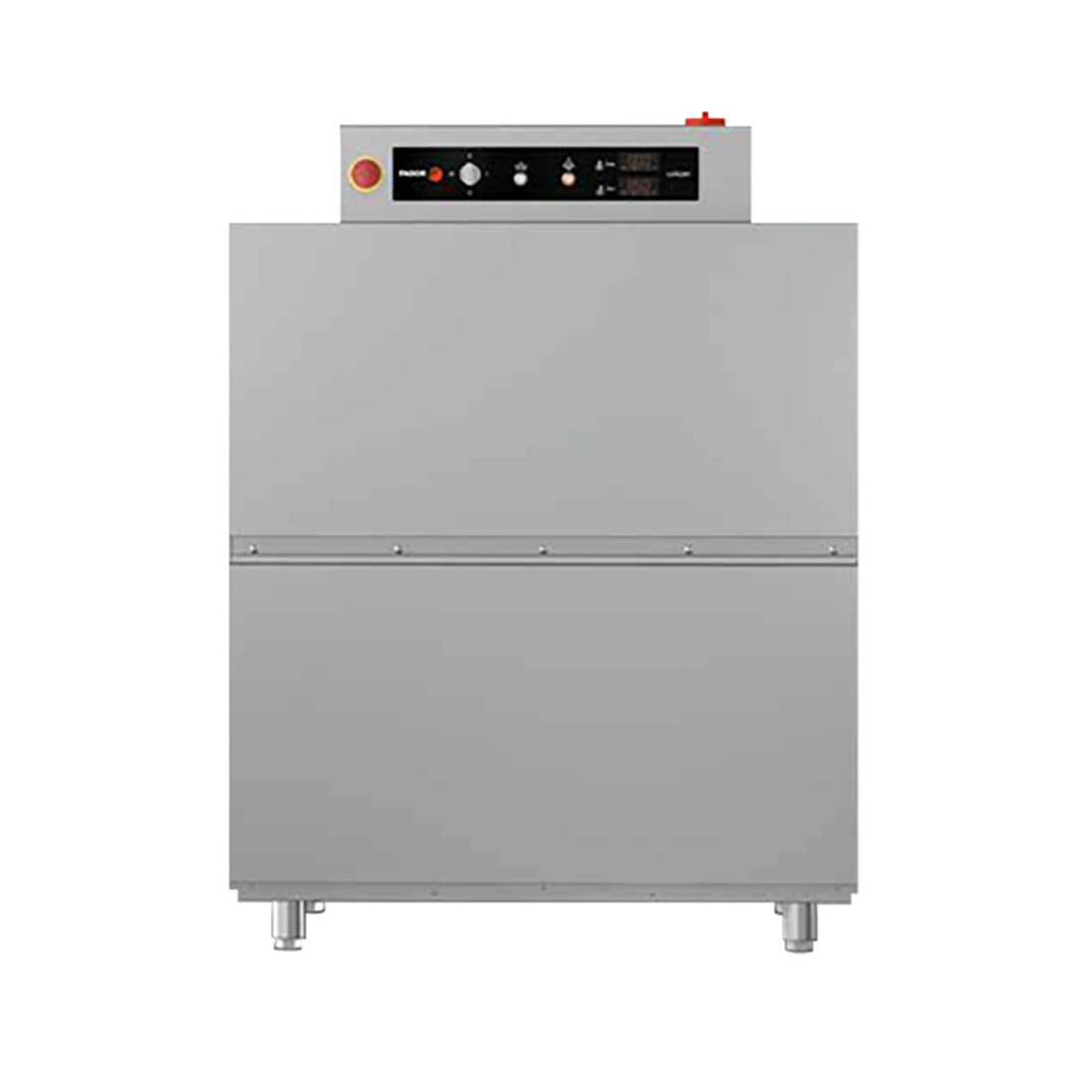

Electric Conveyor Dishwasher Left Entrance - CCO-120ICW

The Electric Conveyor Dishwasher Left Entrance - CCO-120ICW is a highly efficient and reliable option for commercial dishwashing needs. With its left entrance design, it maximizes space efficiency and allows for seamless integration into any kitchen layout. This model, the CCO-120ICW, is specifically designed for optimal performance in high volume establishments, making it an ideal choice for businesses in the food service industry.

• All crucial components are made with AISI-304 stainless steel, known for its corrosion resistance: tanks, washing and rinsing arms, rinsing jets, doors, basket conveyance system, boiler, and metal tubes.
• Upwards-opening double panel door.
• Tank tray filters made of AISI-304 stainless steel, easy to access and remove for cleaning and access to the tank.
• Safety filter for pump suction.
• Rinsing boiler with heat insulation.
• Easy access for installation. Electrovalve located on one side (no need to remove panels to connect the machine).
• Electrical panel designed for easy connection of dosers for liquid and solid detergents, rinse aid, limit switches, supplementary emergency stop button.
• Effortlessly detach the washing arms as a set for easy cleaning, with a removable plug on each branch for convenient access to the interior.
• Rinse jets easily dismountable and removable.
• System of electronic regulation of speeds by means of frequency shifter.
• Configurable electronic temperature control:
  - Wash (50 - 65 °C)
  - Rinse (70 - 85 °C)
• Guarantor of rinse at 85 °C.
• Pressure regulator for flow control.
• Emergency stop button incorporated.
• Extra anti-entrapment protection system at the entrance, mounted on the AS-260 splash guard supplement (optional).
• Open door blocking system.
• IPX4 protection system.
• System for detection of blockage of conveyor carriage and automatic reverse function.
• High-power washing system with 4 upper and 4 lower washing branches.
• 3 washing programs: deep, medium and high capacity.
• Double effect rinse.
• Energy-saving system: reduces consumption by halting operation of the pumps, and by passing the heating of the rinse to stand-by mode (70 °C).
• Auto-timer which deactivates the conveyor motor after a pre-set period of inactivity (10 minutes).
• Energy saving system in the wash: the wash does not start up until it
  detects the passage of the basket.
• Rinse saving system. The rinse stops when the basket has left, saving water and energy.
• Model prepared for entrance of baskets from the left side.
• Model prepared for a cold water connection inlet (Inlet temperature < 50ºC)
• Equipment included:
  2 base baskets, CT-10
  2 baskets for plates CP-16/18, 1 basket for
  glasses CV-16/105, 1 basket for cutlery CT-10 R
  Limit switch included.

2 Years Parts and Labour Warranty
